Blog: Facts and Figures in Software Engineering Research (Part 2)

On July 23, 2002, Capers Jones, Chief Scientist Emeritus of a company called Software Productivity Research gave a presentation called “SOFTWARE QUALITY IN 2002: A SURVEY OF THE STATE OF THE ART”. In this presentation, he shows data on a slide titled “U.S. Averages for Software Quality”.

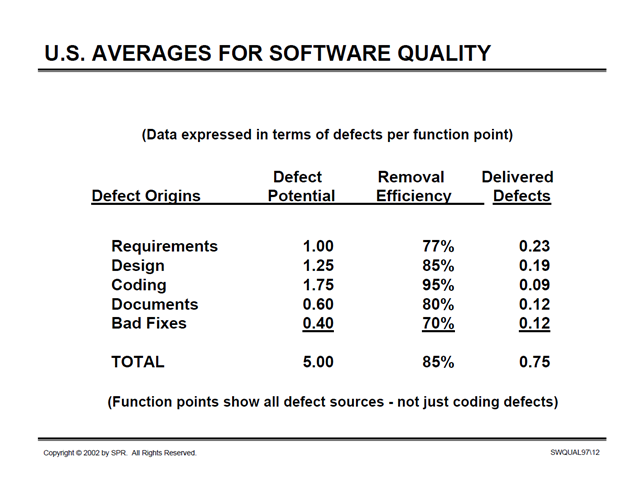

US Averages for Software Quality 2002

(Source: http://bit.ly/1rj19Ol, accessed September 5, 2014)

It is not clear what “defect potentials” means. A slide preceding this one says defect potentials are (or include) “requirements errors, design errors, code errors, document errors, bad fix errors, test plan errors, and test case errors.”

There no description in the presentation of the link between these categories and the numbers in the “Defect Potential” column. Yes, the numbers are expressed in terms of “defects per function point”, but where did the numbers for these “potentials” come from?

In order to investigate this question, I spent just over a hundred dollars to purchase three books by Mr. Jones: Applied Software Measurement (Second Edition) (1997) [ASM2]; Applied Software Measurement: Asssuring Productivity and Quality (Third Edition), 2008 [ASM3]; and The Economics of Software Quality (co-authored with Olivier Bonsignour) (2011). In [ASM2], he says

The “defect potential” of an application is the sum of all defects found during development and out into the field when the application is used by clients and customers. The kinds of defects that comprise the defect potential include five categories:

  • Requirements defects
  • Design defects
  • Source code defects
  • User documentation defects
  • “Bad fixes” or secondary defects found in repairs in prior defects

The information in this book is derived from observations of software projects that utilized formal design and code inspections plus full multistage testing activities. Obviously the companies also had formal and accurate defect tracking tools available.

Shortly afterwards, Mr. Jones says:

Note that this kind of data is clearly biased, since very few companies actually track life-cycle defect rates with the kind of precision needed to ensure really good data on this subject.

That’s not surprising, and it’s not the only problem. What are the biases? How might they affect the data? Which companies were included, and which were not? Did each company have the same classification scheme for assigning defects to categories? How can this information be generalized to other companies and projects?

More importantly, what is a defect? When does a coding defect become a defect (when the programmer types a variable name in error?) and when might it suddenly stop becoming a defect (when the programmer hits the backspace key three seconds later?)? Does the defect get counted as a defect in that case?

What is the model or theory that associates the number 1.25 in the slide above with the potential for defects in design? The text suggests that “defect potentials” refers to defects found—but that’s not a potential, that’s an outcome.

In Applied Software Measurement, Third Edition, things change a little:

The term “defect potential” refers to the probable number of defects found in five sources: requirements, design, source code, user documents, and bad fixes… The data on defect potentials comes from companies that actually have lifecycle quality measures. Only a few leading companies have this kind of data, and they are among the top-ranked companies in overall quality: IBM, Motorola, AT&T, and the like.

Note the change: there’s been a shift from the number of defects found to the probable number of defects found. But surely defects were either found or they weren’t; how can they be “probably found”? Perhaps this is a projection of defects to be found—but what is the projection based on? The text does not make this clear. And the question has still been begged: What is the model or theory that associates the number 1.25 in the slide above with the potential for defects in design?

These are questions of construct validity, about which I’ve written before. And there are many questions that one could ask about the way the data has been gathered, controlled, aggregated, normalized, and validated. But there’s something more troubling at work here.

Here’s a similar slide from a presentation in 2005:

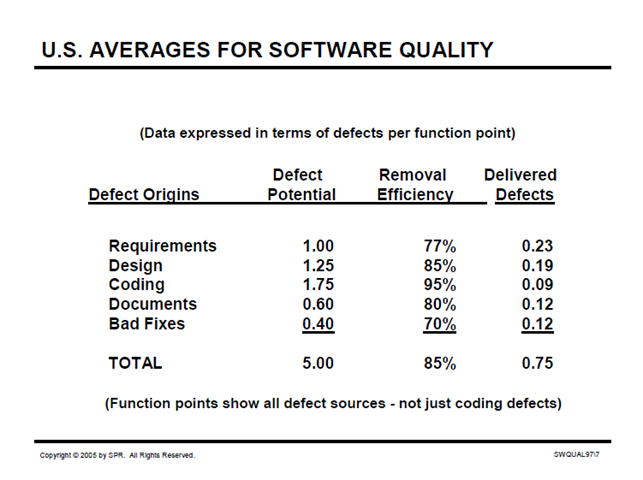

US Averages for Software Quality 2005

(Source: http://twin-spin.cs.umn.edu/sites/twin-spin.cs.umn.edu/files/SQA05l.pdf, accessed September 5, 2014)

From a presentation in 2008:

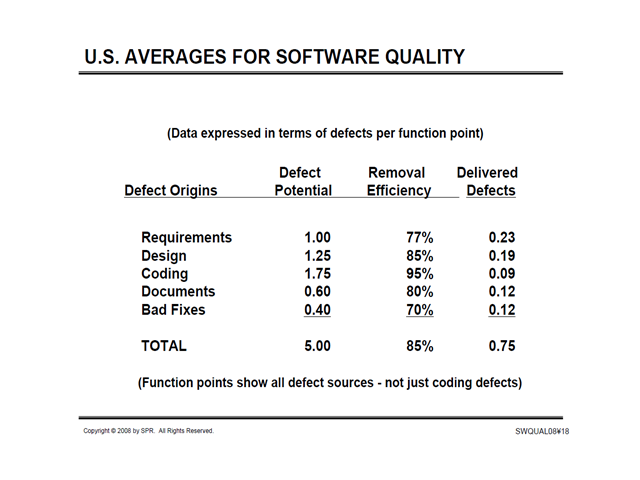

US Averages for Software Quality 2008

(Source: http://www.jasst.jp/archives/jasst08e/pdf/A1.pdf, accessed September 5, 2014)

From a presentation in 2010:
US Averages for Software Quality 2010

(Source: http://www.sqgne.org/presentations/2010-11/Jones-Nov-2010.pdf, accessed September 5, 2014)

From a presentation in 2012:

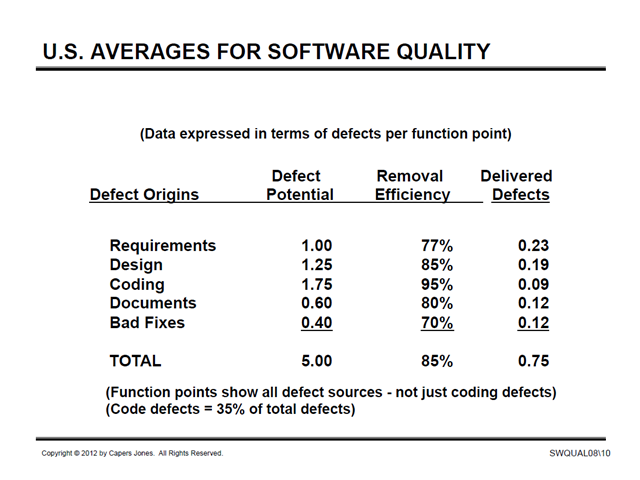

US Averages for Software Quality 2012

(Source: http://sqgne.org/presentations/2012-13/Jones-Sep-2012.pdf, accessed September 5, 2014)

From a presentation in 2013:

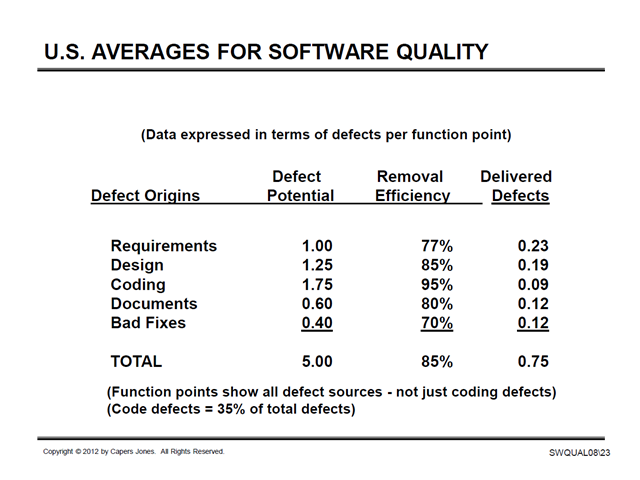

US Averages for Software Quality 2013

(Source: http://namcookanalytics.com/wp-content/uploads/2013/10/SQA2013Long.pdf, accessed September 5, 2014)

And here’s one from all the way back in 2000:
US Averages for Software Quality 2000

(Source: http://www.ifpug.org/Conference%20Proceedings/IFPUG-2000/IFPUG2000-14-Jones-Function_Points_And_Software_Value.pdf, accessed October 22, 2014)

What explains the stubborn consistency, over 13 years, of every single data point in this table?

I thank Laurent Bossavit for his inspiration and assistance in exploring this data.
